How do I know if my panel will support an EV charger without an upgrade?

A load calculation adds the charger's continuous amperage demand to your existing circuit loads and compares the total against your panel's rated service amperage—if headroom exists and an open breaker slot is available, an upgrade may not be necessary.

What size breaker does a Level 2 charger require?

Most Level 2 chargers rated at 48 amps require a 60-amp dedicated circuit breaker, following the standard that continuous loads must not exceed 80 percent of the breaker's rated capacity.

Why does the wiring route from the panel to the charger location affect the cost?

Longer runs, runs through finished walls, and underground installations between a house and detached garage all require additional conduit, labor, and in some cases permits that affect the overall scope of the installation.

When should I consider a panel upgrade before installing the charger?

If your panel is already operating near its rated amperage or has no available breaker slots, adding a 50-amp continuous load without upgrading first creates conditions for breaker trips, overheating, and potential code violations in Spearfish and across South Dakota.

What is included in a free estimate for EV charger installation?

The estimate covers the load calculation, proposed circuit route, hardware mounting location, any panel modifications required, and the full cost of the installation so there are no scope surprises once work begins.

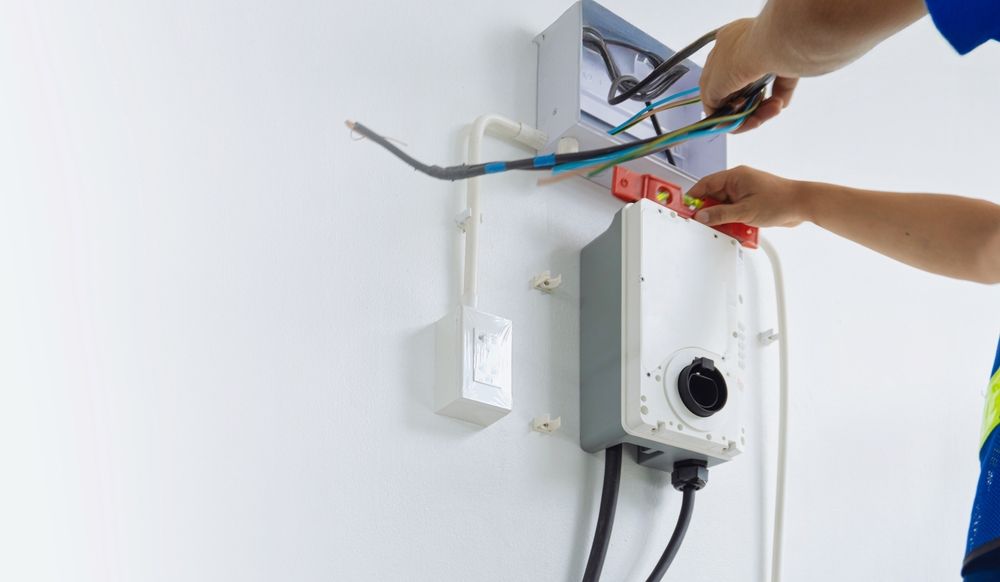

EV Charging Station Installation

EV ownership across the Black Hills has grown faster than most residential electrical systems were designed to accommodate. Older panels installed when a single refrigerator represented the largest continuous load on a circuit were never sized for a 50-amp EV charger running for six or more hours overnight. Canyon Electric installs Level 2 EV charging stations at homes and commercial properties in Spearfish, beginning with a load calculation that establishes whether your current panel can support a dedicated high-amperage circuit or whether a panel upgrade is required first.

Installation involves evaluating your existing electrical service, determining the optimal route for dedicated wiring from the panel to the charger location, and integrating the charging hardware with your home or business power supply in a way that meets current electrical code. The route selection matters practically—wiring run through an unfinished garage is straightforward, but installations in finished spaces or detached structures require conduit planning and, in some cases, trenching for underground runs. Each of those scenarios is assessed before the estimate is finalized.

Arrange a site visit to review your panel capacity and charger placement options before purchasing charging hardware.

A Level 2 charger operates at 240 volts and draws between 30 and 50 amps continuously, which means it cannot share a circuit with other equipment. The dedicated circuit must be sized to the charger's rated amperage, protected by a matching breaker, and wired with conductor gauge appropriate for that load. Canyon Electric performs the load calculation that confirms your panel can absorb that addition without pushing total demand past safe operating limits—a step that prevents nuisance tripping and protects panel equipment over time.

After installation, the charger is hardwired or connected via a properly rated outlet, the circuit is labeled in the panel, and the system is tested under load before the job is closed. You will be able to confirm charge rates match the hardware specifications and that the circuit breaker holds without issue during a full charging cycle.

Commercial properties and multi-unit installations introduce additional considerations around load management, especially when multiple chargers share a single service entrance. In those cases, load-sharing equipment or a dedicated subpanel for the charging stations may be the more practical approach than running independent high-amperage circuits from a single main panel.

How do I know if my panel will support an EV charger without an upgrade?
A load calculation adds the charger's continuous amperage demand to your existing circuit loads and compares the total against your panel's rated service amperage—if headroom exists and an open breaker slot is available, an upgrade may not be necessary.
What size breaker does a Level 2 charger require?
Most Level 2 chargers rated at 48 amps require a 60-amp dedicated circuit breaker, following the standard that continuous loads must not exceed 80 percent of the breaker's rated capacity.
Why does the wiring route from the panel to the charger location affect the cost?
Longer runs, runs through finished walls, and underground installations between a house and detached garage all require additional conduit, labor, and in some cases permits that affect the overall scope of the installation.
When should I consider a panel upgrade before installing the charger?
If your panel is already operating near its rated amperage or has no available breaker slots, adding a 50-amp continuous load without upgrading first creates conditions for breaker trips, overheating, and potential code violations in Spearfish and across South Dakota.
What is included in a free estimate for EV charger installation?
The estimate covers the load calculation, proposed circuit route, hardware mounting location, any panel modifications required, and the full cost of the installation so there are no scope surprises once work begins.

Dedicated Circuits Built for Daily Charging Demands
